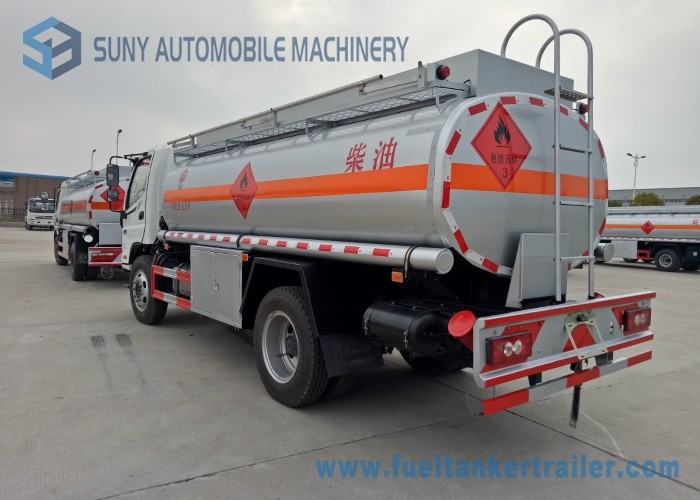

Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck
Description & Applications:
1. Oil tank truck, mobile oil tank truck, diesel or petrol transporting truck, stainless steel oil tank truck
2. Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also a refueling tank truck, with refueling device.
3. Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
4. Tank material: carbon steel, stainless steel, aluminum alloy material tank for choose.
5. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm
Thickness, insulation can be used rock wool, glass wool, polyurethane foam, aluminum silicate. The cladding
6. At the end or side of tank, it can be installed 1-3 self-flow valve.
7. According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.
Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck
| Vehicle Description | Vehicle brand | Foton |
| Vehicle type | Oil Tank Truck |
| Drive form | 4*2 |
| Overall dimension (mm) | 7000x2250x2600 |
| G.V.W(kg) | 10495 |
| Load capacity (kg) | 5210 |
| Curb weight (kg) | 5090 |
| Chassis Description | Chassis brand | Foton |
| Axle load (kg) | 4200/6295 |
| F/R overhang (mm) | 1120/2080 |
| Approach/Departure angle ( ° ) | 15/11 |
| Tread (mm) | 2040 / 1860 |
| Wheelbase (mm) | 3800 |
| Spring plate | 9/11+7 |
| Tyre size & quantity | 8.25-16,8.25R16,8.25-20,8.25R20 |
| Cab | One and half row |
| Engine Description | Engine model | YZ4DB1-30 |
| Displacement (ml) | 4087 |
| Max power (kw) | 80 |
| Horsepower (hp) | 138 |
| Max speed (km/h) | 80 |
| Emission standard | Euro 4 |
| Type of fuel | Diesel |
| Tank Description | Tank volume (m³) | 8 |
| Transport medium | Gasoline |
| Density (kg/m³) | 700 |
| Tank size (mm) | 4000x2000x1350 |
